Mod.1600 (555×432 mm)

Rectangular manwaydoor, opening outwards, for stainless steel tanks
Standard with EPDM gasket G/1500 and s.s. handle VI/165/A. Gasket on cover not glued. On request: nylon handwheel MEC/150/A. Mod. 1600/E: s.s. handle VI/165/A. On request: nylon handwheel MEC/150/A. AISI 304L-14307 / AISI 316L-14404 (**)

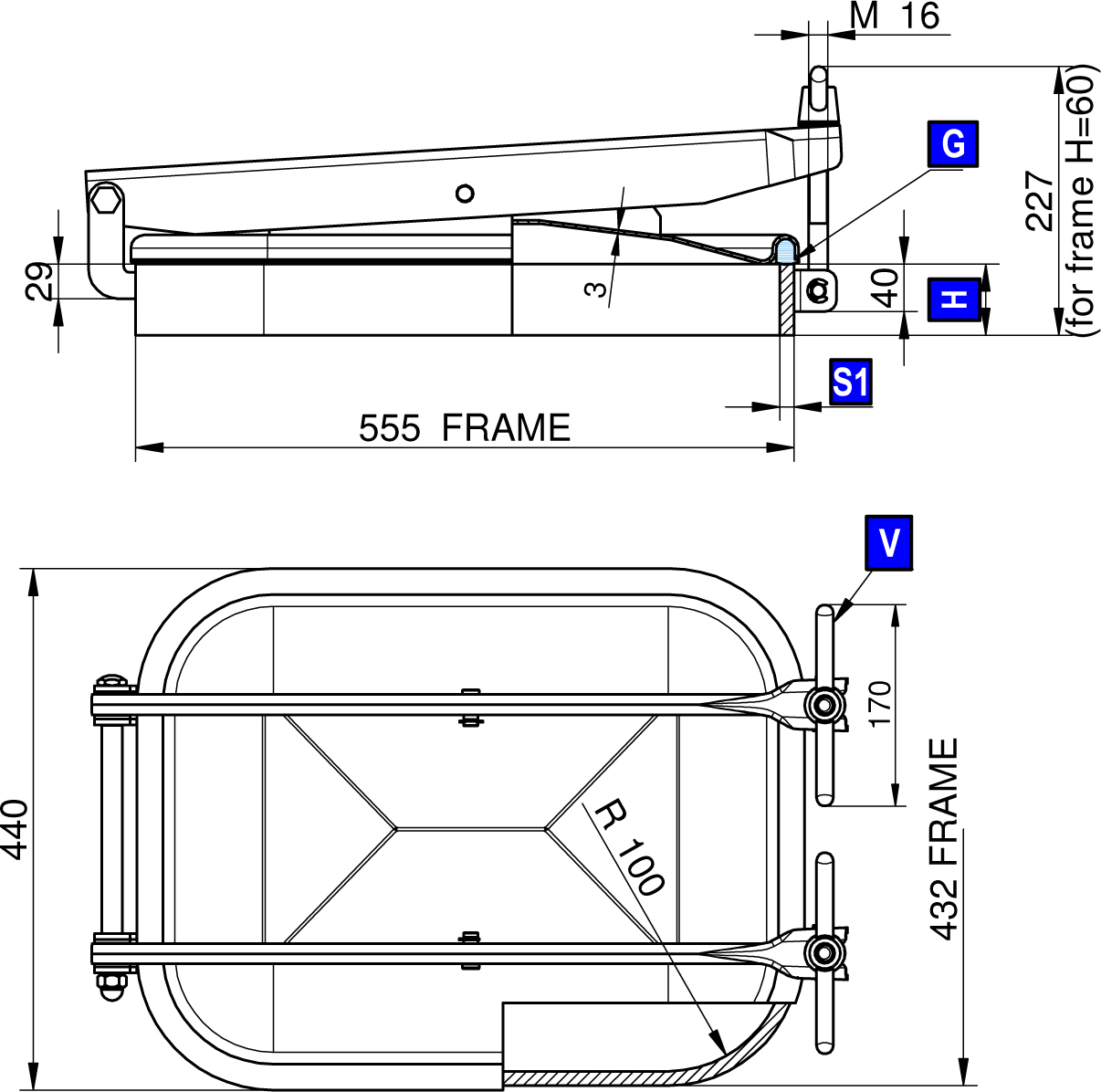

Technical drawings
Exploded
Mod. S1 mm H mm P.max bar Kg
1600 12 60 0 / 0,8 24
1601 12 80 0 / 0,8 26
1602 12 100 0 / 0,8 27,2
1600/E (*) 8 60 0 / 0,5 22,1
1601/E (*) 8 80 0 / 0,5 24
1602/E (*) 8 100 0 / 0,5 25,8
G Guarnizione / gasket

H Altezza telaio / Frame height

V Volantino / Handwheel

(**) All parts not coming into contact with liquids are always in Material  Aisi 304
