Mod.165 (440×332 mm)

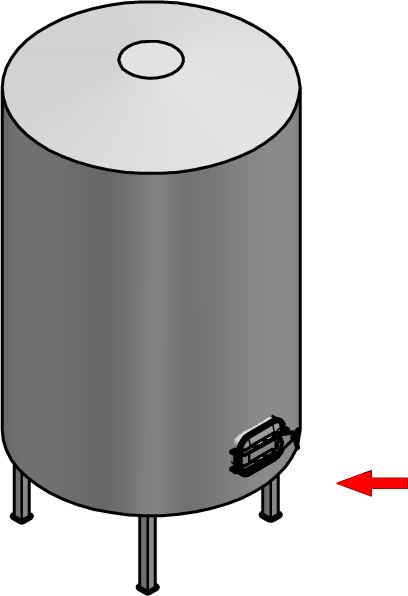

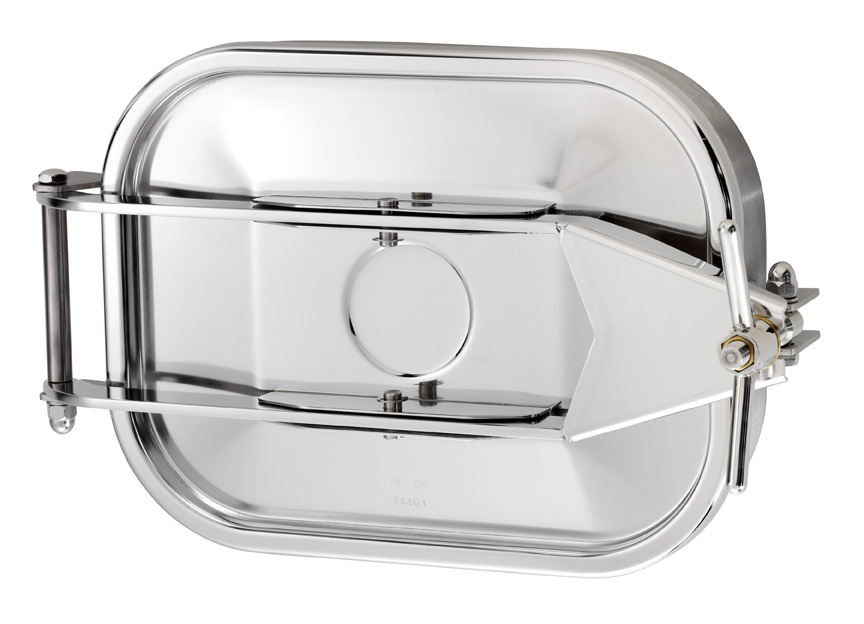

Rectangular manwaydoor, opening outwards, for stainless steel tanks
Standard with EPDM gasket G/R165 and s.s. handle V/I/165/A.
Gasket on cover not glued. On request: nylon handwheel MEC/150/A, s.s. handwheel MEC/80.
Mod. /K: with s.s. handleV/I/165/K, safety nut and gradual opening system.
AISI 304L-14307 / AISI 316L-14404 (*)
| Mod. | H mm | P.max bar | Kg |
|---|---|---|---|
| 165 | 60 | 0 / 0,5 | 12,6 |
| 166 | 100 | 0 / 0,5 | 18 |
| 165k | 60 | 0 / 0,5 | 12,8 |
| 166k | 100 | 0 / 0,5 | 18,8 |

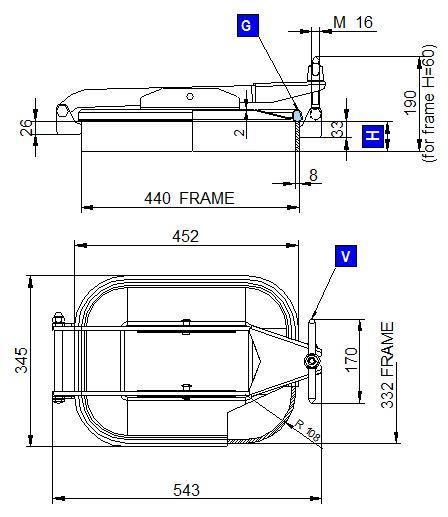

G Guarnizione / gasket
H Altezza telaio / Frame height
V Volantino / Handwheel
(*) All parts not coming into contact with liquids are always in Material Aisi 304
