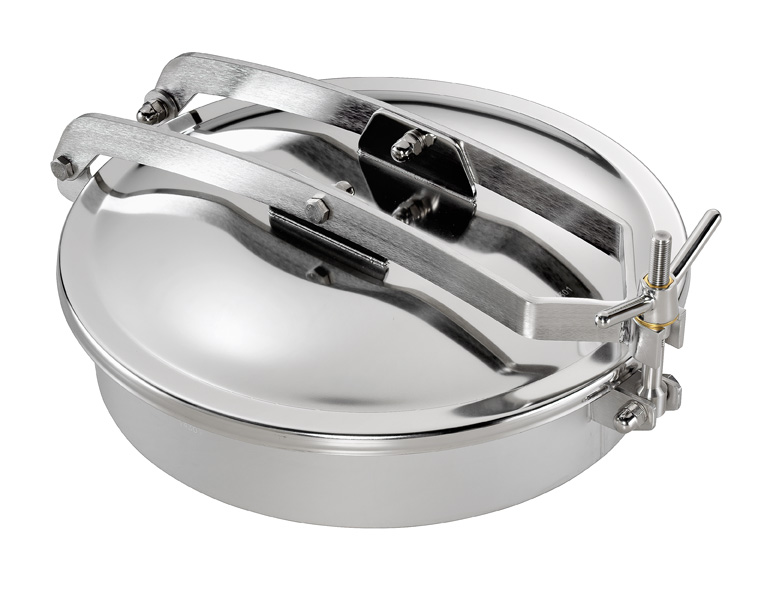

Mod. T/450 (454 mm)

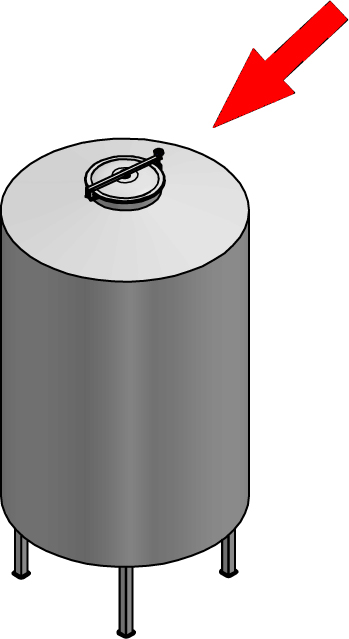

Round manhole cover, for stainless steel tanks
Standard with EPDM gasket G/T450 and s.s. handle VI/165/A.
Gasket on frame not glued.
Available also with hole for relief valve. On request: s.s. handwheel MEC/80, nylon handwheel MEC/80.
AISI 304L-14307 / AISI 316L-14404 (*)
| Mod. | H mm | P.max bar | Kg |
|---|---|---|---|
| T/450 | 100 | 0 / 0,1 | 12,2 |
| T/451 | 150 | 0 / 0,1 | 14,0 |
| T/452 | 200 | 0 / 0,1 | 15,8 |

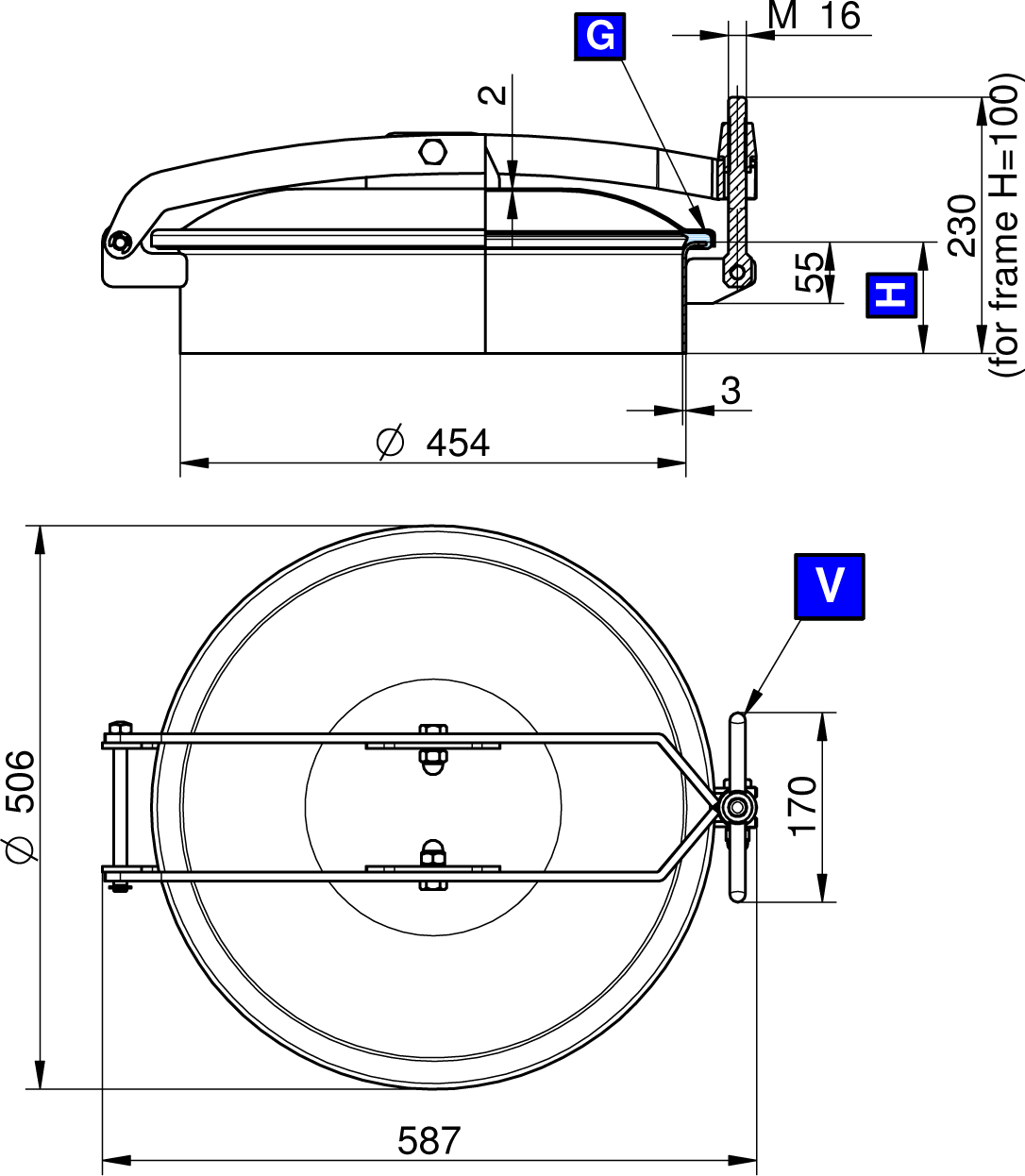

G Guarnizione / gasket
H Altezza telaio / Frame height
V Volantino / Handwheel
(*) All parts not coming into contact with liquids are always in Material Aisi 304
