Mod. 1400 (440 mm x 563 mm)
Mod. 1400 (440 mm x 563 mm)
Rectangular manwaydoor, opening outwards
Standard with EPDM gasket G/1500 and blue nylon handwheel MEC/150A.
Lid: electropolished.
AISI 304L-14307 / AISI 316L-14404 (All the non-wetted parts are in AISI 304).
| Mod. | P. min/max (bar) | Weight (kg) |
|---|---|---|
| 1400 | 0 / 0 | 15,1 |

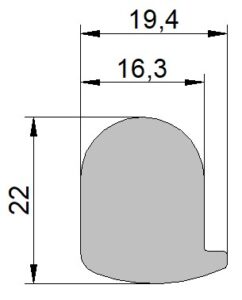

GASKET: G/1500
| CODE | MATERIAL | COLOR | TEMPERATURE |
|---|---|---|---|
| 96420 | NBR | WHITE RAL 9016 | -30 / 110°C |
| 96421 | EPDM | GREY RAL 7040 | -15 / 90°C |
| 96425 | SILICONE | TRANSPARENT | -50 / 200°C |
| 96426 | FPM | BLACK RAL 9017 | -10 / 250°C |
