Mod. 206 (490×395 mm)
Mod. 206 (490×395 mm)
Oval manwaydoor for stainless steel tanks, opening inwards-outwards
Standard with EPDM gasket G/15 and s.s. handle VI/190.
Gasket on the cover (not glued).
Lid: electropolished. Frame: satin finished.
AISI 304L – 14307 / AISI 316L – 14404 (All the non-wetted parts are in Aisi 304).
| Mod. | H (mm) | P. min/max (bar) | Weight (kg) |
|---|---|---|---|
| 206 | 150 | 0 / 2,7 | 21,3 |

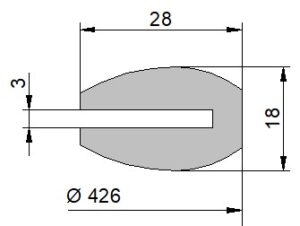

GASKET: G/15
| CODE | MATERIAL | COLOR | TEMPERATURE |
|---|---|---|---|
| 96000 | NBR | WHITE RAL 9016 | -30 / 110°C |
| 96001 | EPDM | GREY RAL 7040 | -15 / 90°C |
| 96005 | SILICONE | TRANSPARENT | -50 / 200°C |
| 96006 | FPM | BLACK RAL 9017 | -10 / 250°C |
