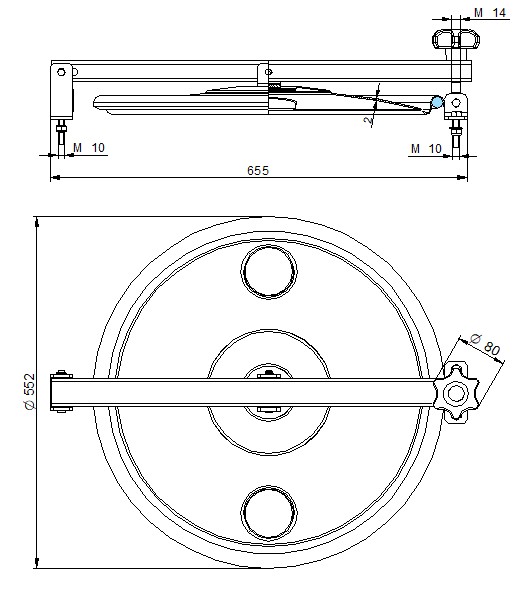

Mod. N/150 (552 mm)
Mod. N/150 (552 mm)
Round manhole cover with back-side and side-swing opening
Standard with EPDM gasket G/TR500 and black nylon handwheel MEC/80A.
Gasket on the cover (not glued).
Lid: electropolished.
AISI 304L-14307 / AISI 316L-14404 (All the non-wetted parts are in Aisi 304).
| Mod. | P. min/max (bar) | Weight (kg) |
|---|---|---|
| N/150 | 0 / 0 | 8,7 |
PRODUCT VERSIONS:
with hole for relief valve
GASKET: G/TR500
| CODE | MATERIAL | COLOR | TEMPERATURE |
|---|---|---|---|
| 96170 | NBR | WHITE RAL 9016 | -30 / 110°C |
| 96171 | EPDM | GREY RAL 7040 | -15 / 90°C |
| 96175 | SILICONE | TRANSPARENT | -50 / 200°C |
| 96176 | FPM | BLACK RAL 9017 | -10 / 250°C |
