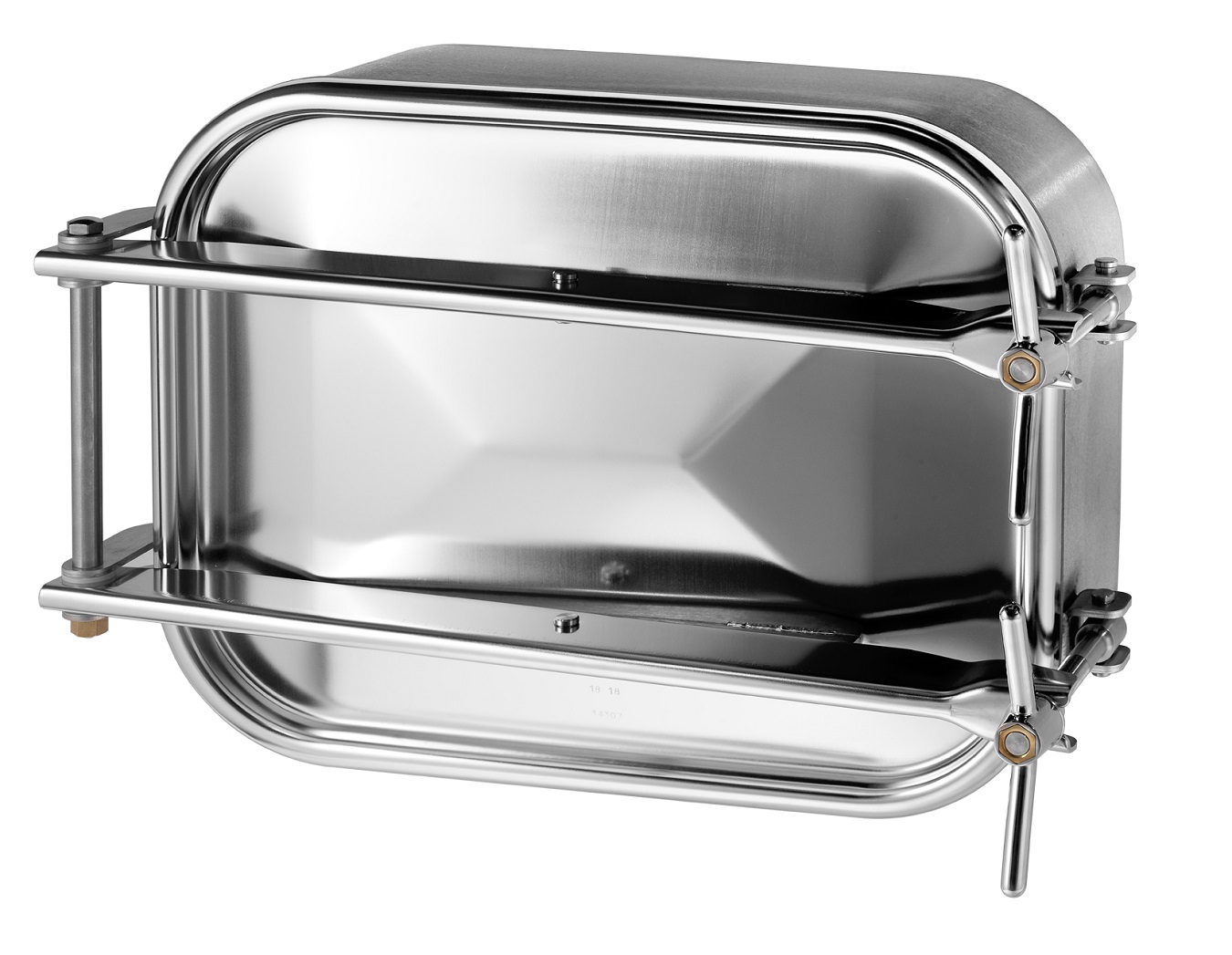

Mod.1603 (555×432 mm)
Rectangular manwaydoor, opening outwards, for stainless steel tanks
Standard with EPDM gasket G/1500 and s.s. handle VI/165/A.
Gasket on cover not glued.
On request: nylon handwheel MEC/150/A.
AISI 304L-14307 / AISI 316L-14404 (*)

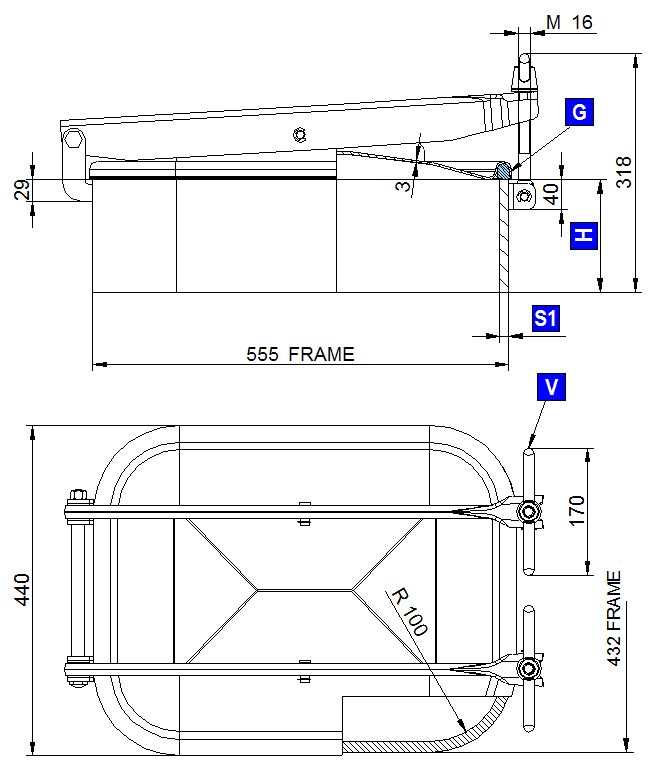

| Mod. | S1 mm | H mm | P.max bar | Kg |
|---|---|---|---|---|
| 1603 | 12 | 150 | 0 / 0,8 | 42,4 |
G Guarnizione / gasket
H Altezza telaio / Frame height
V Volantino / Handwheel
(*) All parts not coming into contact with liquids are always in Material Aisi 304
