Mod.180 (440×320 mm)

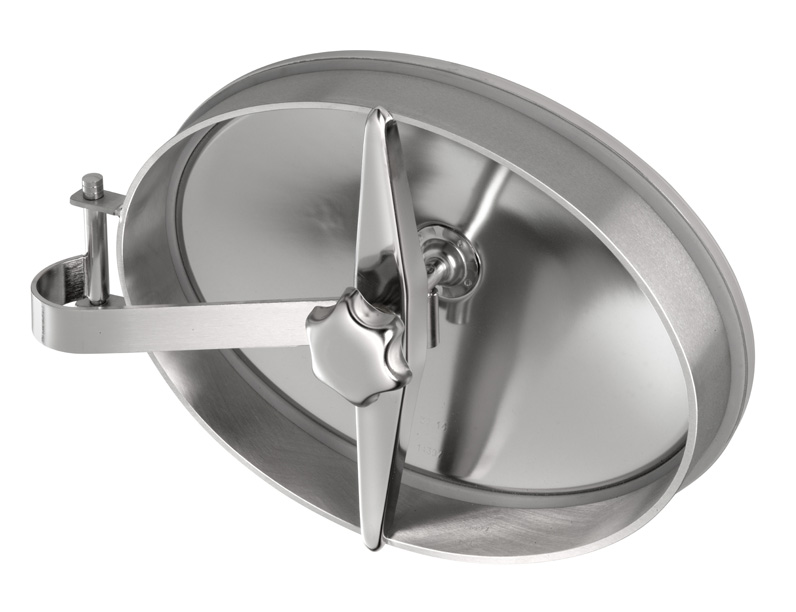

Oval manwaydoor, opening inwards, for stainless steel tanks
Standard with EPDM gasket G/170 and s.s. handwheel MEC/80. Gasket on cover not glued. On request: s.s. handle VI/165; nylon handwheel MEC/150/BLU. AISI 304L-14307 / AISI 316L-14404 (*)

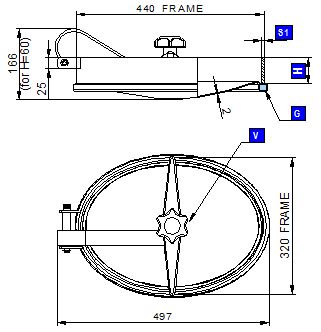

Technical drawings
Exploded
Mod. H mm S1 mm P.max bar Kg
180 60 6 0 / 1,3 8,3
182 80 6 0 / 1,3 9,6
184 60 8 0 / 1,3 8,7
186 80 8 0 / 1,3 10
G Guarnizione / gasket

H Altezza telaio / Frame height

S1 Spessore / Thickness

V Volantino / Handwheel

(*) All parts not coming into contact with liquids are always in Material  Aisi 304
