Mod.200/LZD (532×432 mm)

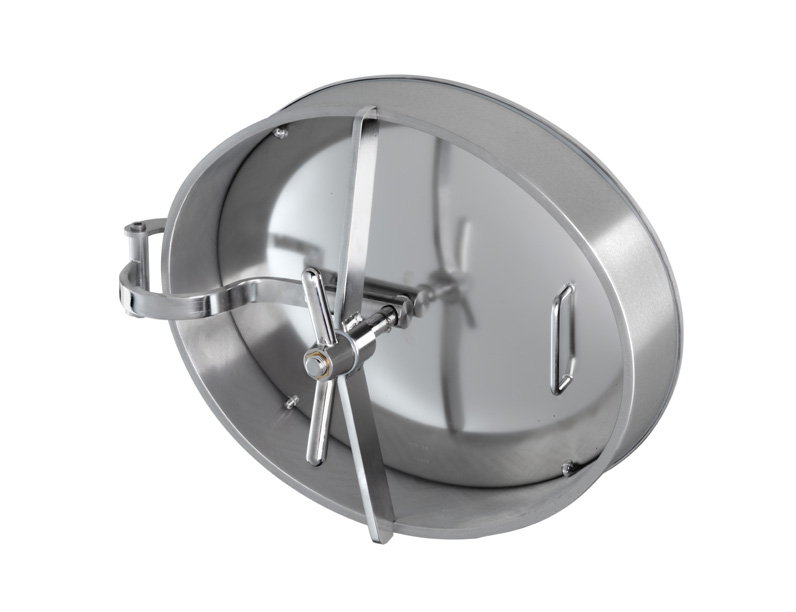

Oval manwaydoor, opening inwards and outwards, for stainless steel tanks
Complying with PED guidelines (max 100°C). Standard with EPDM gasket G/200/LZD and s.s. handle V/I/190. Gasket on cover not glued. AISI 304L-14307 / AISI 316L-14404 (*)
Mod. H mm P.max bar Kg
200LZD 60 0 / 4,8 18,4
201LZD 100 0 / 4,8 24

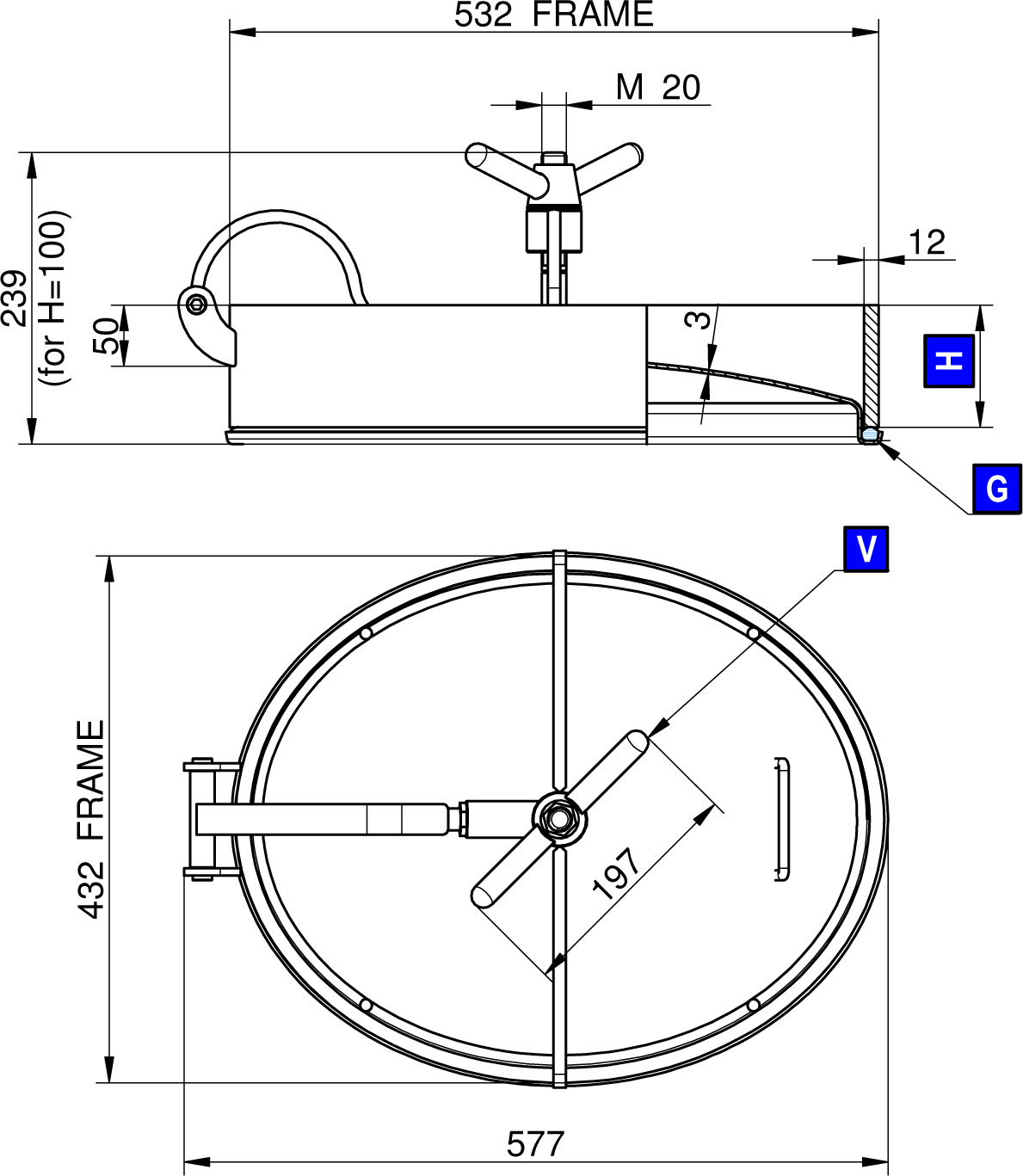

G Guarnizione / gasket

H Altezza telaio / Frame height

V Volantino / Handwheel

(*) All parts not coming into contact with liquids are always in Material  Aisi 304
